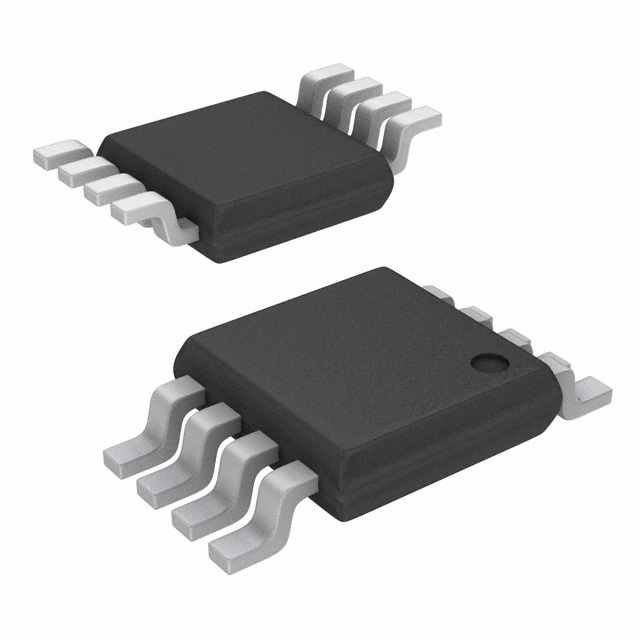

TC7WH02FU,LJ(CT

Home page Product Center Integrated Circuits (ICs) Logic Gates and Inverters

TC7WH02FU,LJ(CT

Part number:

TC7WH02FU,LJ(CT

Product Category:

Gates and Inverters

Manufacturer:

Toshiba Electronic Devices and Storage Corporation

Description:

IC GATE NOR 2CH 2-INP SM8

Encapsulation:

Tape & Reel (TR)

Packing:

Quantity

3800

RoHS status:

PDF：

Price inquiry

Quantity

Consult

Quantity

Price

Total price

3000

$0.09

$270

6000

$0.09

$540

15000

$0.08

$1200

30000

$0.08

$2400

75000

$0.07

$5250

150000

$0.07

$10500

Obtain quotation information

Product parameters

Operating Temperature

-40°C ~ 85°C

Mounting Type

Surface Mount

Number of Inputs

Number of Circuits

Voltage - Supply

2V ~ 5.5V

Supplier Device Package

SM8

Logic Type

NOR Gate

Max Propagation Delay @ V, Max CL

7.5ns @ 5V, 50pF

Current - Quiescent (Max)

2 µA

Current - Output High, Low

8mA, 8mA

Package / Case

8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
