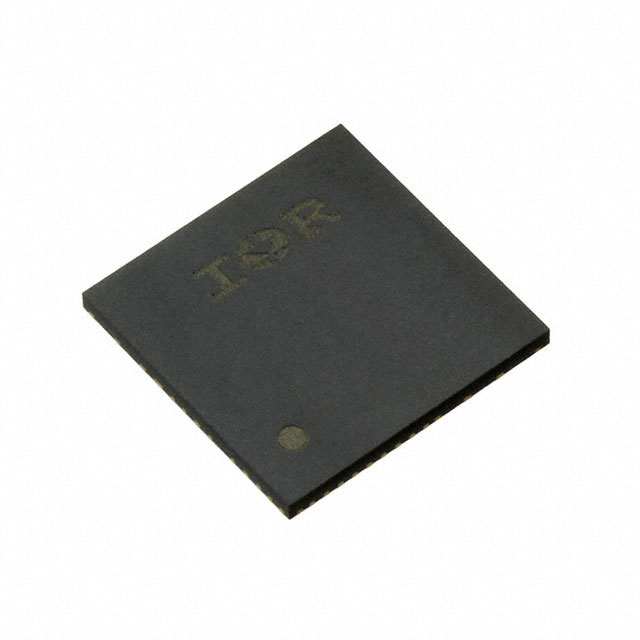

IRSM836-084MA

Part number:

IRSM836-084MA

Product Category:

Full Half-Bridge (H Bridge) Drivers

Manufacturer:

IR (Infineon Technologies)

Description:

IC HALF BRIDGE DRIVER 7A 36QFN

Encapsulation:

Tray

Packing:

Quantity

1674

RoHS status:

PDF：

Price inquiry

Quantity

Consult

Quantity

Price

Total price

$8.2

$7.4

$74

$7.05

$176.25

160

$6.13

$980.8

320

$5.85

$1872

480

$5.34

$2563.2

960

$4.64

$4454.4

2400

$4.48

$10752

Obtain quotation information

Product parameters

Mounting Type

Surface Mount

Operating Temperature

-40°C ~ 150°C (TJ)

Interface

Logic

Voltage - Supply

10V ~ 20V

Output Configuration

Half Bridge (3)

Applications

AC Motors

Load Type

Inductive

Technology

UMOS

Features

Bootstrap Circuit

Fault Protection

UVLO

Package / Case

36-PowerVQFN

Supplier Device Package

36-PQFN (12x12)

Voltage - Load

200V (Max)

Rds On (Typ)

310mOhm

Current - Output / Channel

Current - Peak Output

27A
