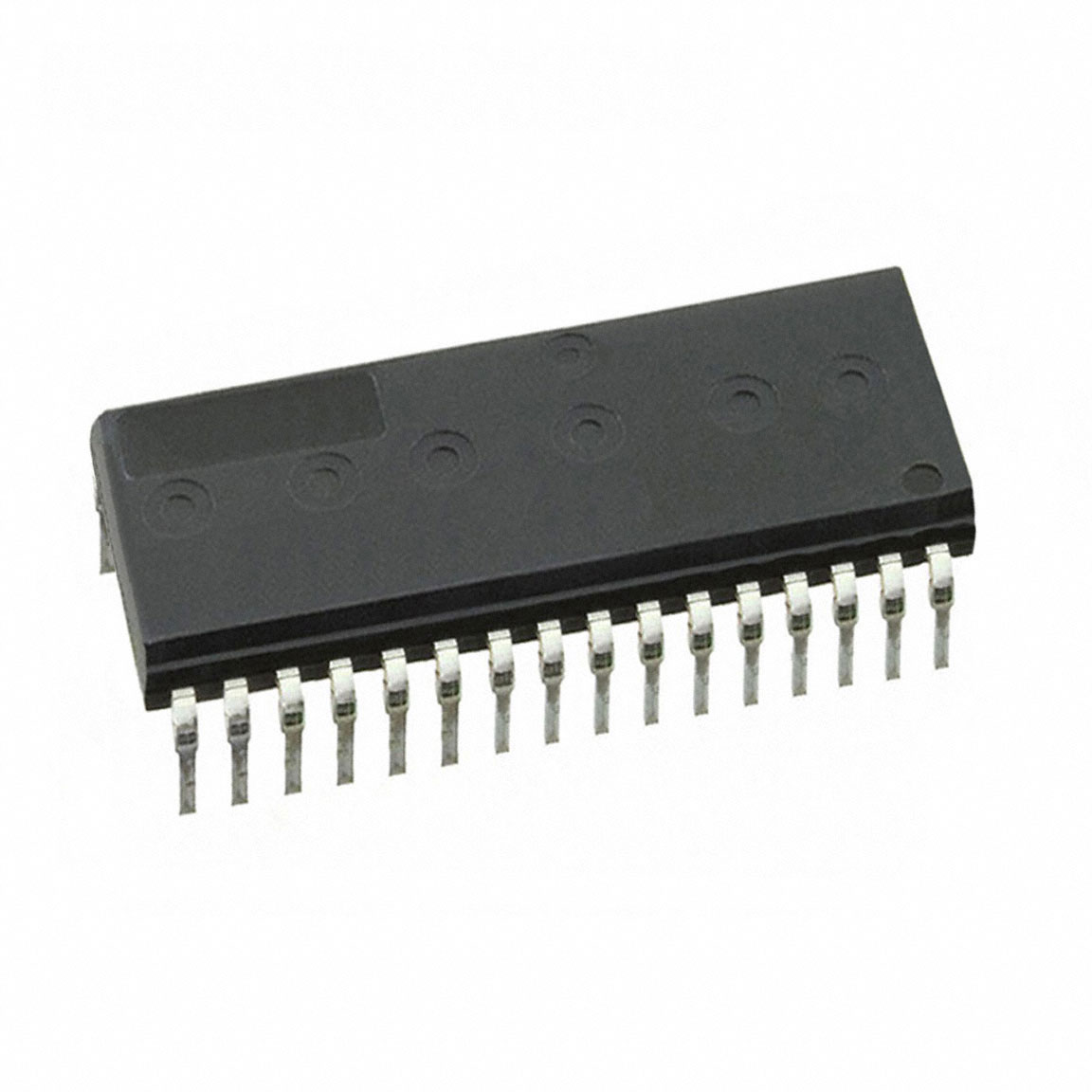

IRSM516-076DA2

Home page Product Center Integrated Circuits (ICs) Power Management (PMIC) Full Half-Bridge (H Bridge) Drivers

IRSM516-076DA2

Part number:

IRSM516-076DA2

Product Category:

Full Half-Bridge (H Bridge) Drivers

Manufacturer:

IR (Infineon Technologies)

Description:

IC HALF BRIDGE DRIVER 4A 23DIP

Encapsulation:

Packing:

Quantity

1600

RoHS status:

PDF：

Price inquiry

Product parameters

Mounting Type

Through Hole

Operating Temperature

-40°C ~ 150°C (TJ)

Interface

Logic

Package / Case

23-PowerDIP Module (0.551", 14.00mm)

Current - Output / Channel

Output Configuration

Half Bridge (3)

Applications

AC Motors

Load Type

Inductive

Voltage - Supply

13.5V ~ 16.5V

Features

Bootstrap Circuit

Fault Protection

UVLO

Technology

IGBT

Current - Peak Output

15A

Supplier Device Package

23-DIPA

Voltage - Load

480V (Max)
